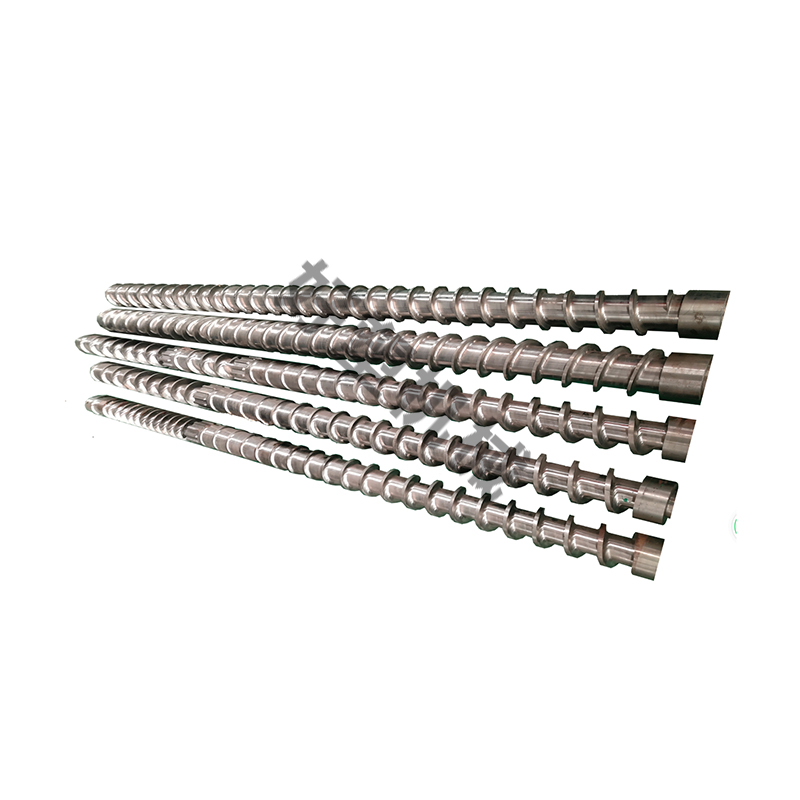

Single screw extruder
Uses: It can be used for general plastics PP, PE, ABS, PA, PS, PC, PET and other plastic extrusion molding and extrusion granulation.
Features:
1. The material is made of high-quality alloy steel 38 Cr MoAIA, 420rMo, after 120 hours of carburizing treatment, the surface hardness can reach 900～1020HV.

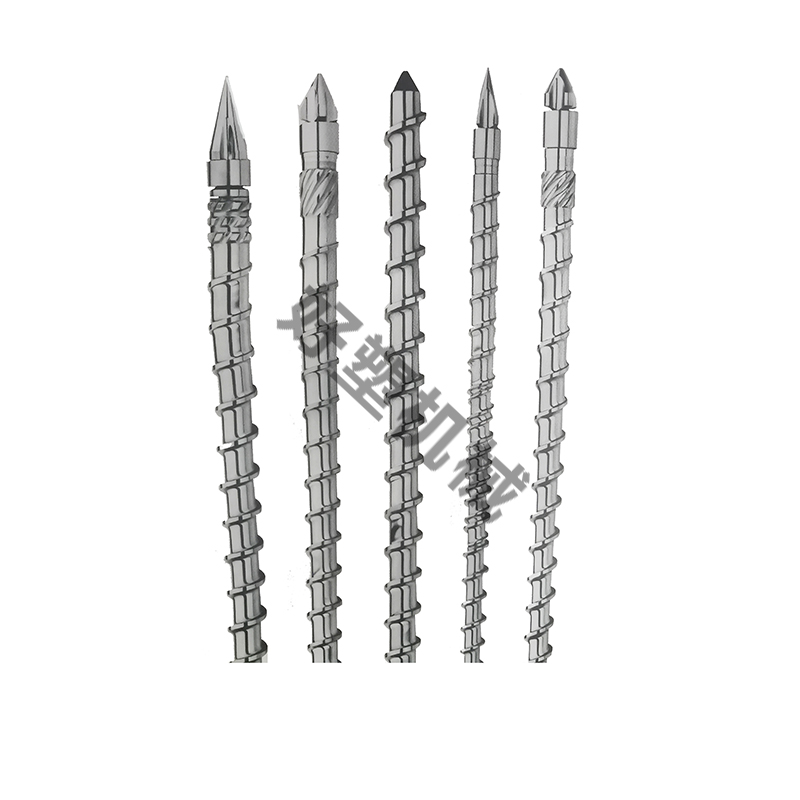

2. The screw types and specifications are complete Φ30mm-Φ50mm, different plastic properties can choose different structures of screw rods, which can improve the plasticization effect, gradient type, mutation type, barrier type, shunt type, separation type, exhaust type, Mixed type, double head type, multi head type, etc.
3. The unique design of the discharge port of the extrusion screw makes it fast to eat, high extrusion output and durable.
Extruder twin screw
Uses: Parallel twin screws are used for extrusion and granulation of various materials, mainly for PE (plastic film), PE (hollow material), PP (hollow material) (woven bag), ABS, PP-R), etc. Material granulation.
Features:
1. The material can be extruded with moisture content. Two horizontal screws in one barrel rotate in opposite directions to make it eat fast, high output and good plasticization.
2. Compared with single screw, twin screw extrusion can save electricity by 30%.
|
