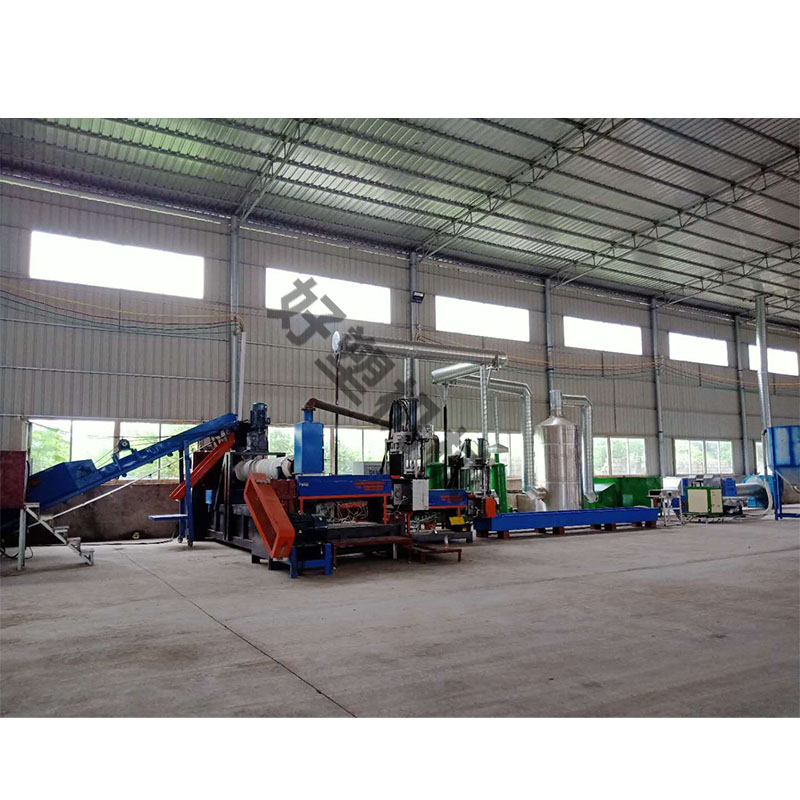

| Three-stage plastic granulator (woven bag)
Uses: It can be used to make HDPE, LDPE, PP and other plastic woven bags with water after washing.
Features
1. Using intelligent forced feeding machine to ensure uniform feeding, saving people and high output.
2. The heating system adopts energy-saving and environmentally friendly electromagnetic, which is troublesome, and the wet material with water is directly on the machine for granulation without dehydration.
3. The screw is designed according to the characteristics of the material, and the output is high, and the particles made with good gloss and fullness; the configuration of all aspects of the whole machine is increased to increase the service life of the equipment
4. The company's pelletizer has the characteristics of high output and low energy consumption: large torque gearbox and high-power motor; the screw is specially designed to effectively increase the production capacity and increase the plasticization effect
5. High-quality electrical and drive equipment make machines and equipment safer and more reliable in use
The main technical parameters
|
Model |
Diameter(mm) |
Length(mm) |
Power(KW) |
Output(kg/h) |
|
160 |
160 |
2200 |
30 |
200~250 |
|
180 |
180 |
2600 |
55 |
250~300 |
|
200 |
200 |
3000 |
75 |
300~400 |
|
225 |
225 |
3200 |
90 |
400~500 |
|
250 |
250 |
4000 |
132 |
500~700 |
|
280 |
280 |
4200 |
160 |
700~900 |
|
